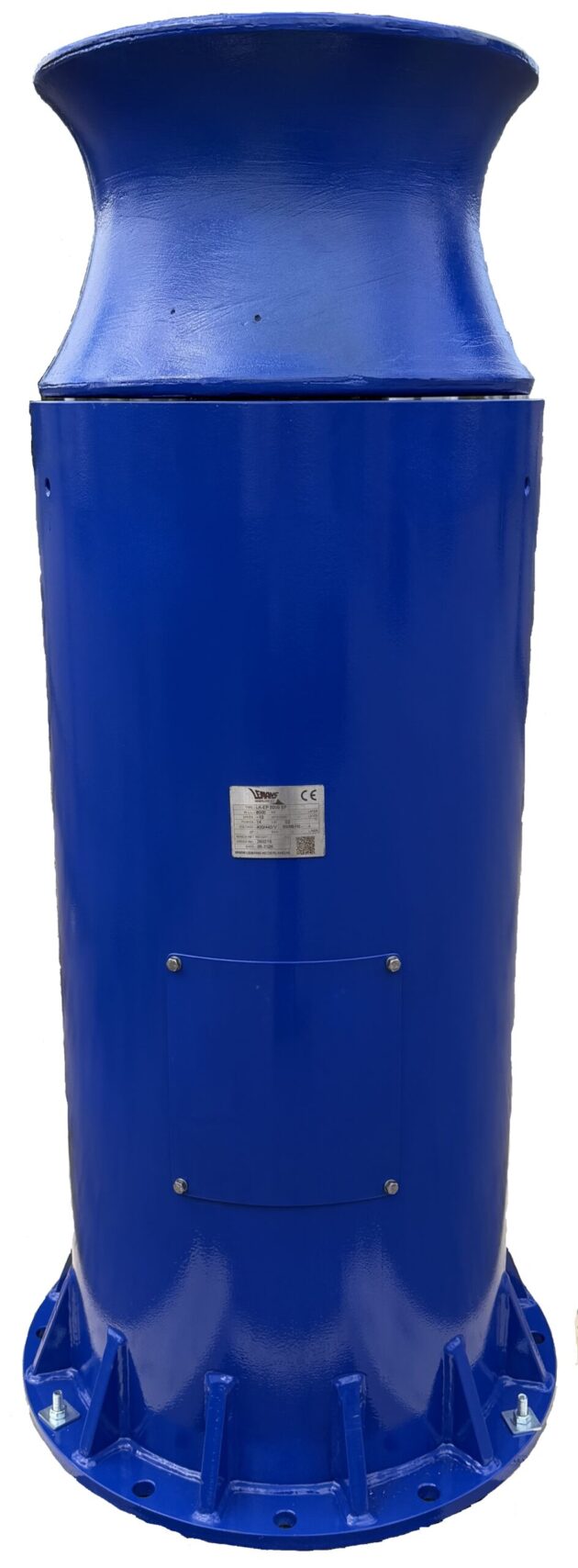

Type : LK-EP 8000
Load pull : W.L.L. 8.000 Kg.
Hauling Speed : ~10 mtr/min
Warping head : Neck diameter ø405 x 315mm (DxL)
Electromotor : IE3 14kW-S2 (50Hz)
Voltage : 400/440V 50/60Hz
Protection : IP55
Motor brake : W.L.L. 110% / Rectifier GE-400 / Anti-corroion friction plate
Transmission : Planetary gear unit / incl. oil fill
Preservation : Sand blasted SA2½ / 150µm marine paint 2K blue RAL5002
Class of Mechanism : T4-L2-M4 (FEM 1.001 and ISO 4301/1)
