LEM043. Electric Worm Hoisting Winch LM-EW580H

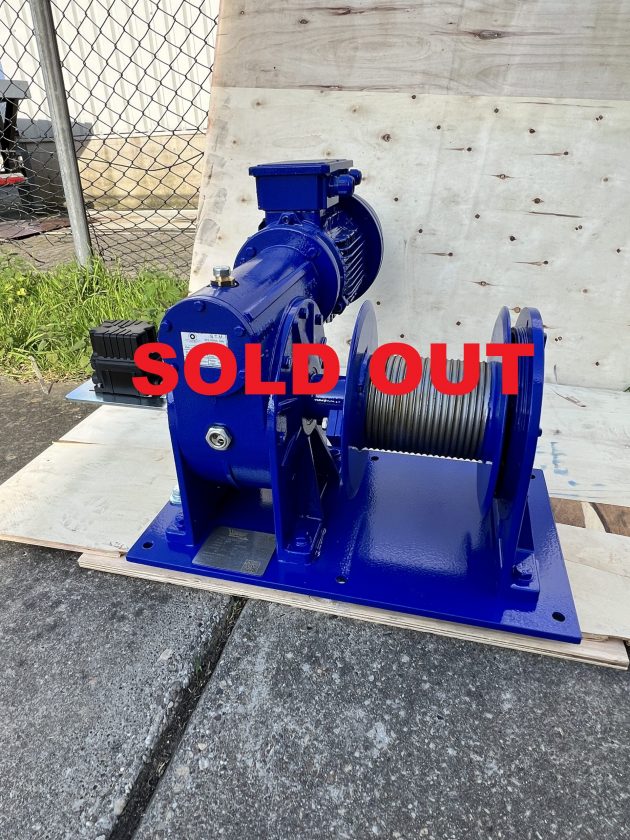

Electric Worm Hoisting Winch LM-EW580h

Type: LM-EW580h
Hoist force: w.l.l. 580 Kg. 3rd. layer
Speed: ~7 mtr./min 3rd. layer
Drum: grooved (left) / ø124 x 150mm (P.C.D. x L)
Fleet distance: min. 2,8 mtr
Drum capacity: 28 mtr / ø7mm / in 3 layers (incl. 3 safety turns)
E-motor: IE3 1,1kW-S2 / 400V-50Hz / IP56
Motor brake: w.l.l. 150% / rectifier GE-400 / fully enclosed IP67 TENV
Transmission: worm gearbox / incl.oil fill
Preservation: sand blasted SA21/2 / 150um marine paint 2C blue RAL5002
Class of Mechanism: T4-L2-M4 (FEM 1.001 and ISO 4301/1)
Remarks: incl. TER limit switch IP66 with 2 contacts.
