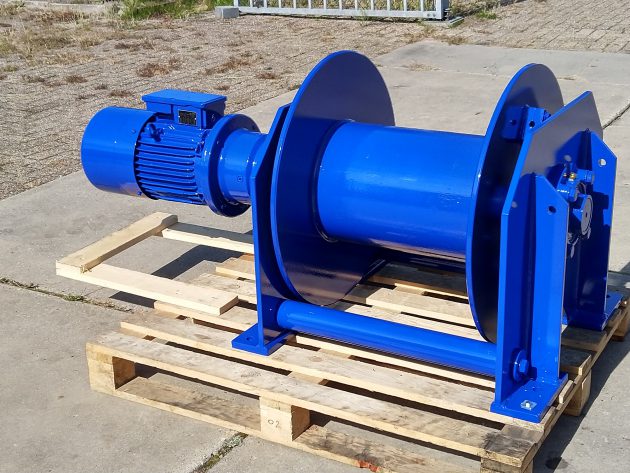

LEM041. Electric Planetary Winch LM-EP 5000

Lemans Nederland B.V. Electric Planetary Winch

Type: LM-EP 5000
Load pull: w.l.l. 5.000 Kg. 1st. layer
Hauling speed: ~9 mtr/min 1st. layer
Drum capacity: appr. 197 mtr / √ł16mm / in 5 layers (incl. 3 safety turns)
E-motor: 8kW-S2 / 400V-50Hz / IP56
Motor brake: w.l.l. 125% / anti corrosion disc brake
Transmission: planetary gear unit
Preservation: sand blasted SA21/2 / 150um marine paint 2C blue RAL5002
Class of Mechanism: T4-L2-M4 (FEM 1.001 and ISO 4301/1)
Weight: 405 Kg.
