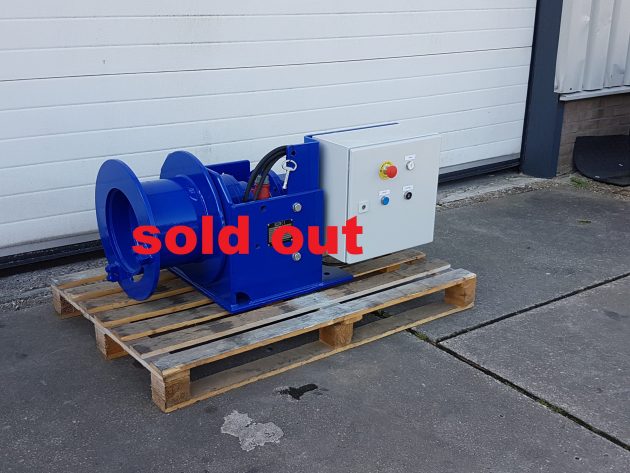

LEM038. Electric Planetary Winch LM-EPV 3500

Lemans Electric Planetary Winch

Type: LM-EPV 3500
Load pull: W.L.L. 3.500 Kg. 1st. layer
Hauling speed: 6 mtr/min 2nd layer
Drum cap.: appr. 42 mtr / √ł14mm / 3 layers (incl. 3 safety turns)
E-motor: 4kW-S2
Voltage: 400V-50Hz
Protection: IP54 / TENV
Motor brake: W.L.L. 125% / GE-400
Transmission: Planetary gear unit
Preservation: sand blasted SA21/2 / 150um marine paint system 2C blue RAL5002
Remark: inclusive control box D.O.L. IP65, mounted and wired onto the winch
