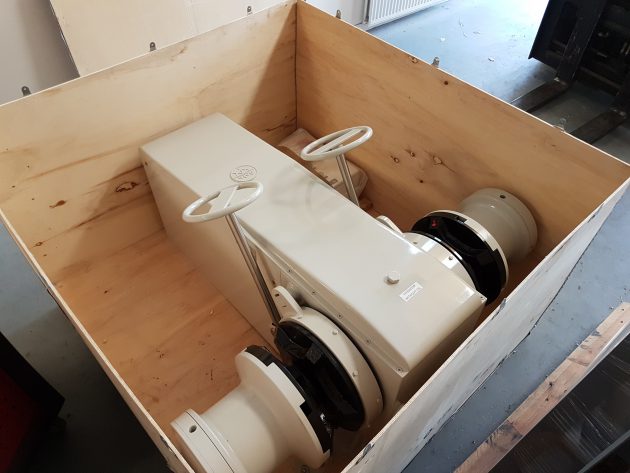

Electric Anchor Windlass LA-DZC 3302EP-22L
2x Gypsy and 2x Warping Head
Continuous pull: 2700 Kg.
Max. line pull: 3600 Kg.
Pulling speed: 13 m/min
Warping head pull: 3300 Kg.
Warping head speed: 13 m/min
Brake cap.: 11000 Kg.
Chain dim.: 22mm stud-link
Chain Quality: Q2
Gear box: worm gear in oil bath and planetary drive
